Ballistic Shields

Ballistic Shield

SM carapace offers ergonomically design ballistic shields of various defence applications. These shields provide protection against multiple threats starting from 9mm rounds to NIJ Level IV. Ballistic shields are designed for use by law enforcement personnel/all kinds of defense forces.

Features:
  • Ergonomically designed for the comfort of the user.
  • Ballistic glass used offers clear version and provides same level of protection as the main shield.
  • Rugged and sturdy, capable of withstanding all weather hazards.
  • Equipped with forehead and forearm impact attenuating ethafoam pads built into the inside surface of the shields designed to absorb shock from fragment / bullet and pressure wave impacts.
  • Provided with ambidextrous handles.
  • Equipped with shoulder strap to enable hand free carriage.
Optional features:
  • Trolley or stand for carrying shield.
  • Detachable lightening system with rechargeable battery.
  • Different shield sizes and view port sizes can be available on requests.

Weight of Shield

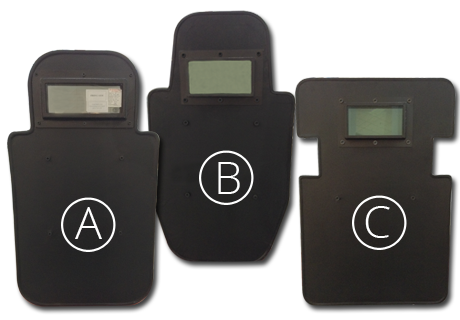

Protection Level Ammunition   Option A Option B Option C Remarks
Level IIIA (9 mm)
Level IIIA		 9mm
9mm, 0.357 SIG, 0.44 Mag		 LW
STD		 6.7 kg N/A 6.5
  For Opt A and B For Opt C
Shield
Size		 900 X 500 mm 900 x 600 mm
View Port
Size		 200 x 120 mm 250 x 100 mm
Glass
Size		 230x150 mm 280 x 130 mm
7.0 N/A 7.5
LW
STD		 6.5 N/A 7.5
8.0 N/A 9.0
Level III   Level III+   Level III++   Level III + AK 47 HSC 7.62 x 51 mm NATO ball UL 13.0 12.5 15.5


  For Opt A and B For Opt C
Shield
Size		 900 X 500 mm 900 x 600 mm
View Port
Size		 190 x 080 mm 200 x 120 mm
Glass
Size		 230x150 mm 280 x 130 mm
LW 13.5 13.0 16.5
STD 14.0 13.5 17.0
7.62 x 39 mm Mild steel core
7.62 x 51 mm NATO ball		 UL 13.5 13.0 16.5
LW 14.0 14.0 17.5
STD 14.5 14.5 18.0
5.56 x 45 mm SS109
7.62 x 51 mm NATO ball		 UL 14.0 13.5 17.0
LW 15.0 14.5 18.5
STD 16.0 155 19.5
7.62 x 39 mm Hard Steel Core
7.62 x 39mm Mild Steel Core
5.56 x 45 mm SS109
7.62 x 51 mm NATO ball		 UL 16.0 15.5 19.5
LW 17.5 16.5 21.0
STD 19.0 18.5 23.5
Level IV 0.30 Caliber M2 AP
7.62 x 39 mm Hard Steel Core
7.62 x 39mm Mild Steel Core
5.56 x 45 mm SS109
7.62 x 51 mm NATO ball		 UL 20.0 19.5 25.0
  For Opt A and B For Opt C
Shield
Size		 900 X 500 mm 900 x 600 mm
View Port
Size		 200 x 120 mm 250 x 100 mm
Glass
Size		 230 x 150 mm 280 x 130 mm
LW 22.0 21.0 27.0
STD 24.5 23.5 30.0
Eco 28.0 27.0 35.0
